KCL2000-LED
Self-powered LED light tower for construction sites, events and security perimeters
Four 500 W LED panels on a 4.5 m telescopic mast, mounted on a four-wheel chassis with an onboard generator. One person can move it, raise the mast, and have a 50–150 m radius of working light in under five minutes.
Diesel or petrol. 3 kW to 5 kW.
Same chassis, same LED rig — pick the genset that matches your fuel logistics and load requirements.

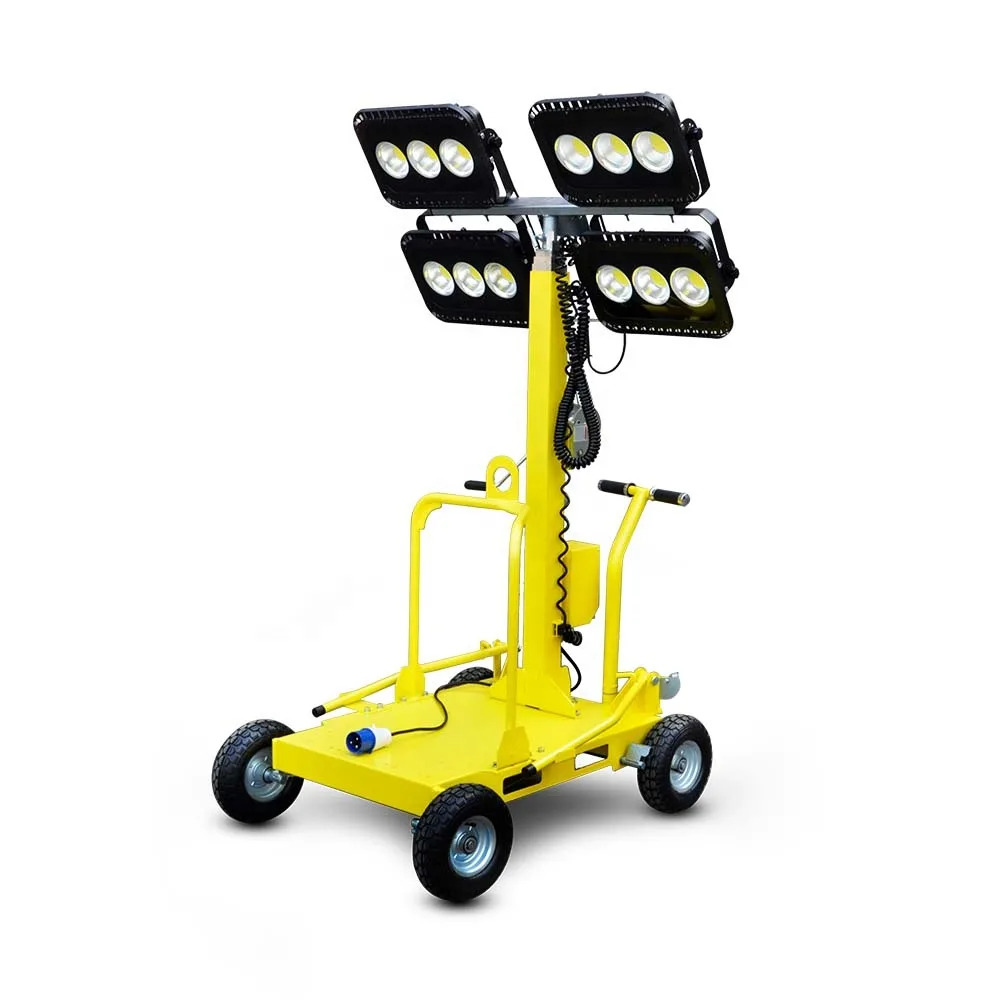

Petrol genset (3–5 kW)
Lighter, cheaper, easier to refuel from a jerry can. Suited to short-duration jobs and sites where diesel logistics are a hassle.
- GensetPetrol, electric start
- Power options3 / 4 / 5 kW
- LiveryYellow
Diesel genset (5 kW silent)
Recommended for long-running construction sites. Shares fuel logistics with the rest of the diesel fleet. 14h+ runtime per tank.
- Genset5 kW silent diesel
- VoltageAC 220 V / 50 Hz
- LiveryRed
Built to be moved, raised, and forgotten
One person sets it up. Manual telescopic mast. Wheels for any surface. IP65 enclosure for dust and rain.
4×500 W LED panels
2000 W of cool white LED. 50–150 m radius coverage. ≥1 year of bulb life under typical site duty.
360° + 90° rotation
Each lamp head: 360° horizontal, 90° vertical. Aim the light exactly where it's needed.
4.5 m manual mast
Stainless-steel telescopic mast. 1.5 m stowed for transport, 4.5 m extended for working light. Manual crank, no power required.
Remote or manual control
Operate the lamps from the panel or a wireless remote. Electric-start genset; no pull-cord wrestling.

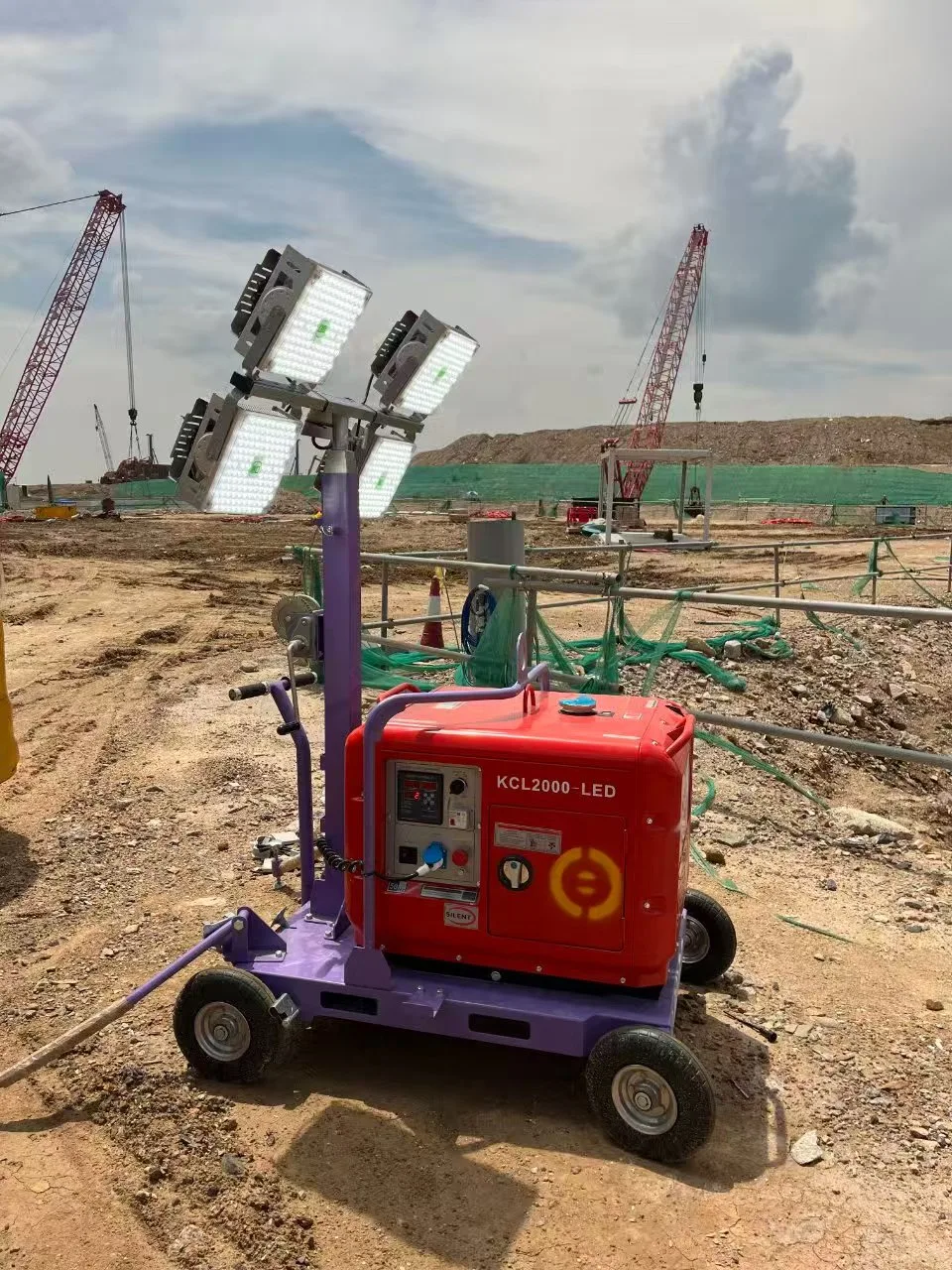

Hong Kong reclamation site
Two KCL2000-LED units providing perimeter and access lighting on an active marine reclamation project.
Technical specifications
Detailed datasheet available on request.
| Light source | LED 4 × 500 W |
| Coverage radius | 50–150 m |
| Lamp life | ≥1 year |
| Head rotation | H 360° / V 90° |
| Panel size | 660×120×550 mm |
| Panel weight | 8 kg |
| Protection | IP65 |
| Lift mode | Manual crank |
| Extended height | 4.5 m |
| Stowed height | 1.5 m |
| Material | Stainless steel |
| Mast weight | 30 kg |
| Wind rating | Beaufort 6 |
| Total weight | 195 kg |
| Type | Diesel or petrol |
| Power options | 3 / 4 / 5 kW |
| Default | 5 kW silent diesel |
| Voltage | AC 220 V / 50 Hz |
| Start | Electric |
| Fuel tank | 16 L |
| Runtime (full tank) | ≥14 h |
| Control | Remote or manual |
When to use the KCL2000-LED
A workhorse for any site that needs bright, reliable area light without running mains.
Construction night shifts
Perimeter and access-route lighting. 4.5 m mast clears most temporary fencing and stockpiles.
Events and outdoor production
Crew areas, parking, load-in zones. Lighter and quieter than older halogen rigs.
Emergency and security
Incident response, temporary checkpoints, perimeter security. Self-powered, deploys in minutes.
